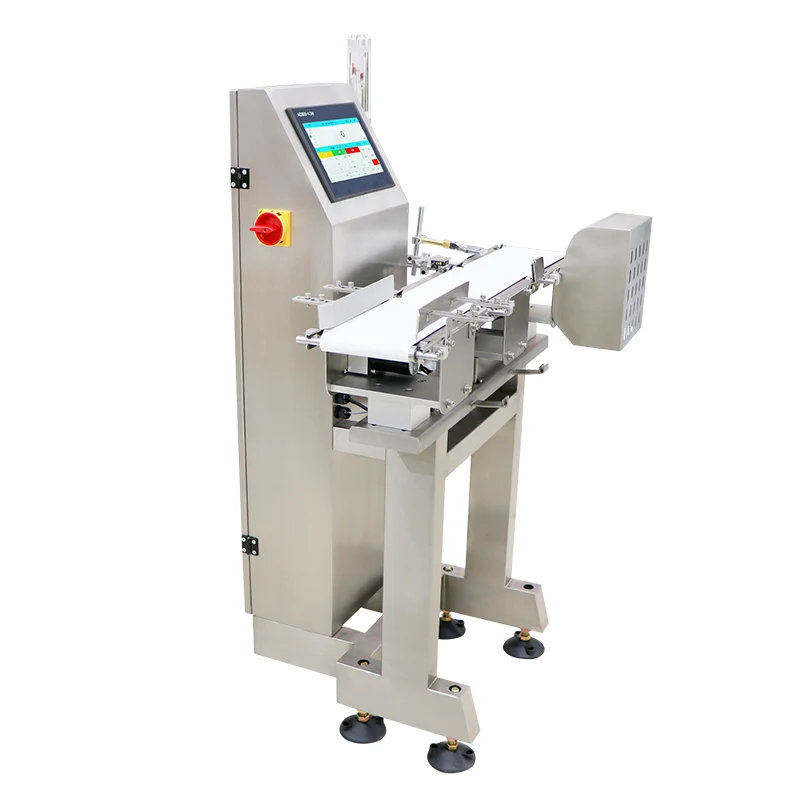

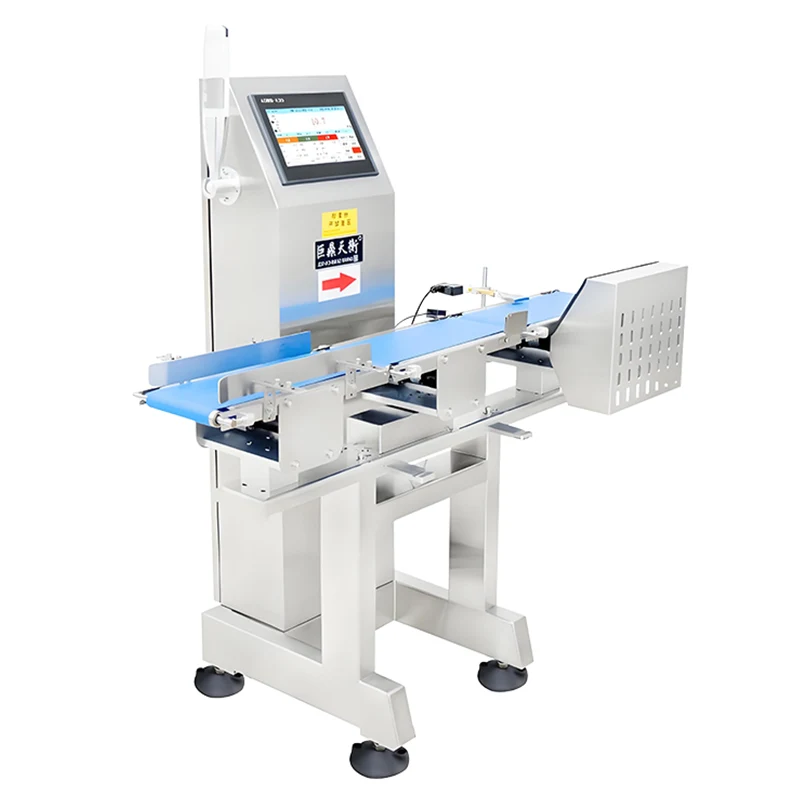

High Speed Air Blowing Checkweigher

The High Speed Air Blowing Checkweigher is a dedicated online weight inspection device independently developed and manufactured by Jiangsu Jutian Weighing Equipment Co., Ltd. With over 20 years of in-depth expertise in the weighing industry, it is designed to address the checkweighing pain points of lightweight, small and fragile products on automated production lines.

It provides non-destructive, high-speed and precise full-process weight compliance control solutions for small product production lines in the food, pharmaceutical, electronics and other industries. To date, it has been exported to more than 50 countries and regions worldwide, earning wide recognition from customers at home and abroad.

Product Structure & Working Principle

The High Speed Air Blowing Checkweigher adopts a three-stage modular structure, consisting of an infeed conveyor section, weighing section, and air-blow rejection section. It can be seamlessly integrated with various automated production line equipment such as packaging machines, metal detectors and inkjet printers, enabling fully automated operation of the entire production line.

The infeed conveyor section stabilizes and calibrates the speed of incoming products from the upstream line, ensuring products enter the inspection area at a constant spacing and uniform speed, eliminating the impact of speed fluctuations on detection accuracy.

The weighing section is the core unit of the equipment. Equipped with high-precision weighing sensors and Jutian’s self-developed intelligent weighing control system, it completes real-time collection, analysis and judgment of weight data the moment a product passes through, and synchronously outputs qualified/unqualified signals.

The rejection section features an air-blow actuator composed of a high-response solenoid valve and precisely positioned nozzles. Upon receiving the signal, it actuates within milliseconds, blowing unqualified products off the main conveyor line via directional airflow. The entire process is completely free of mechanical contact, causing no damage to the product itself.

The main frame of the machine is constructed from high-quality stainless steel, paired with a food-grade PU conveyor belt. The core drive component is a 24V brushless motor, which delivers stable, jitter-free operation. It is easy to install, disassemble, clean and maintain, making it suitable for complex production environments across multiple industries.

Core Performance Highlights

The core performance of the igh Speed Air Blowing Checkweigher is tailored to the checkweighing needs of small, fragile products, with three key advantages:

1.Non-contact, non-destructive rejection: The air-blow rejection solution eliminates impact and physical contact, completely avoiding the risk of product damage, making it ideal for inspecting flexible packaging, fragile items and precision components.

2.High-speed, high-precision detection: It covers a weighing range of 0.1–5kg, with a minimum detection accuracy of ±0.5g and a maximum inspection speed of 200 pieces per minute, meeting the 100% full inspection requirements of high-cycle production lines.

3.Flexible adaptation & digital management: It supports Chinese-English bilingual operation. Inspection data can be exported via USB flash drive, and the device can be connected to enterprise production management systems, with customizable adjustments for diverse scenarios.

Core Technical Parameters

Applicable Industries & Application Scenarios

The equipment is widely suitable for online checkweighing of lightweight and small products across industries, with typical applications including:

Food & Beverage Industry: Net content compliance inspection of candies, nuts, baked pastries, bagged snacks and small condiment packets;

Pharmaceutical Industry: Full weight inspection of tablets, capsules, blister-packed medicines, small-dose medicine sachets and medical consumables;

Electronics & Light Industry: Missing parts detection for precision components, small hardware fittings and digital accessories;

Daily Chemical Industry: Weight control of facial mask sheets, bagged toiletries samples and cosmetic trial packs.

Quality Assurance & Full-Process Service

The product has passed authoritative international certifications including CE and ISO, and complies with the OIML R51 international metrological standard. Strict full-process quality control is implemented throughout production, with 100% full performance and simulation operation testing completed before delivery to ensure stable, compliant performance of every unit.

In terms of service, Jutian provides a 12-month free warranty and lifetime maintenance for the equipment, along with complete Chinese and English installation & operation manuals and instructional videos. We offer 24-hour remote technical response, on-site installation, commissioning and operation training.

Full-process OEM and ODM customization services are available. We use export-standard packaging and support various transportation methods including sea freight, air freight and international express. We provide real-time progress updates throughout the order production process, delivering one-stop checkweighing solutions for customers worldwide.
