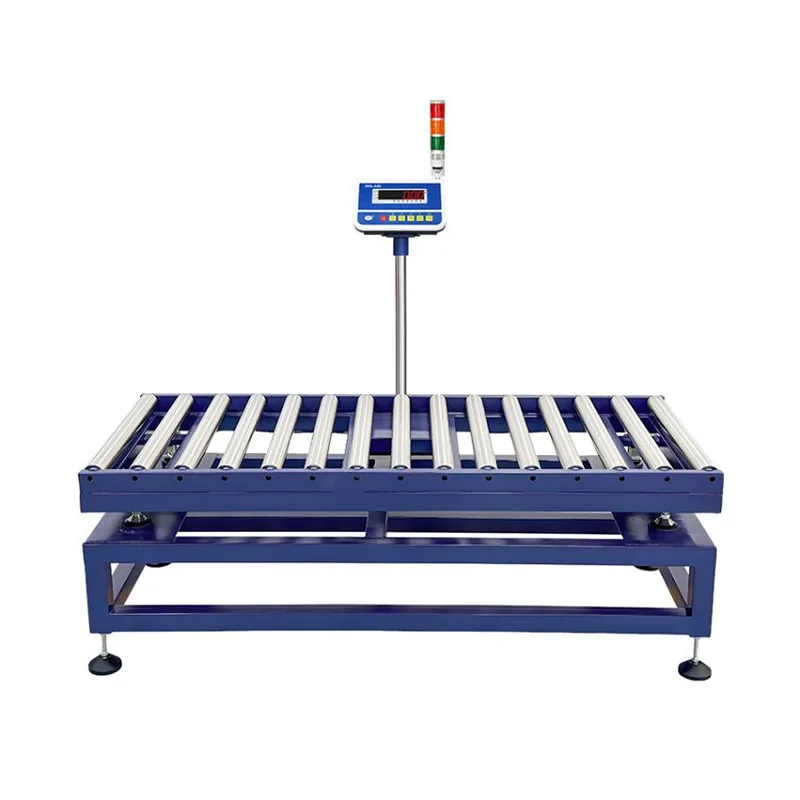

Check-weighing Gravity Roller Conveyor Scale with Alar

Display Function: The quality Check-weighing Gravity Roller Conveyor Scale with Alarm  by Jutian features a large 32mm high-brightness LED digital tube display, ensuring clear and easy-to-read data even under harsh lighting conditions.Unit Conversion: Supports free conversion between multiple international units such as kg/g/lb, fully adapting to weighing habits in different countries and regions.

Core Check-Weighing & Alarm Function: The built-in alarm system allows setting alarms for qualified or unqualified weights and includes a memory function for one set of upper/lower weight limits. When the cargo weight exceeds or falls below the set range, the alarm is automatically triggered, enabling intelligent check-weighing and quality control.

Basic Weighing Functions: Integrates practical functions such as zeroing, taring, gross weight, net weight, accumulation, weight memory, and power-saving mode to meet basic weighing needs in various scenarios.Indicator Construction: Features an ABS plastic housing and a durable 6-key mechanical keypad, ensuring long service life, impact resistance, and convenient operation.Power Supply Method: Powered by AC 220V (with built-in 6V4A storage battery), supporting AC/DC dual use. It can operate normally during sudden power outages, ensuring continuous production line operation.

Optional Communication & Expansion Functions: Optional RS232, RS485, Bluetooth, TTL, Ethernet port, WIFI, 4G IoT, USB data storage, relay signal output, 5V general-purpose I/O output, 4-20mA analog output, and other communication methods and output interfaces. It can interface with logistics software, PDAs, mobile APPs, cloud systems, etc., enabling intelligent data management and networked operation.

Product Advantages

High-Precision Weighing: Our Check-weighing Gravity Roller Conveyor Scale with Alarm employs a high-precision weighing sensor with accuracy up to 1/15,000 and an internal resolution of 600,000, ensuring precise and stable weighing data to meet high-accuracy demands across industries. Compared to traditional mechanical scales, it offers stronger stability and higher sensitivity, significantly improving weighing efficiency.

Robust and Durable Construction: The scale frame is made of thickened carbon steel welded with a painted exterior finish, combined with stainless steel rollers, providing corrosion resistance, impact resistance, and a long service life. Optional full 304/316 stainless steel frame and rollers, or rubber-coated rollers, are available to adapt to harsh environments like humidity or corrosion. The device has no fulcrum knives or knife edges, reducing maintenance work and making it more convenient to use.

High Efficiency & Energy Saving: The gravity roller design utilizes the cargo's own weight for conveying, saving energy and reducing operating costs. The rollers operate smoothly, ensuring cargo is conveyed and weighed without damage, enhancing production line efficiency. It meets the demands of continuous operation, eliminates the need for dedicated weighing personnel, and saves labor costs.

Strong Customization Capability: Weighing platform dimensions and materials can be customized according to specific customer requirements. Weighing application systems can be tailored based on the customer's industry characteristics and usage scenarios, with flexible configuration of optional functions to meet the diverse needs of overseas clients.

Easy Operation and Maintenance: The 6-key mechanical keypad design is simple and intuitive, requiring no professional training. The device features a simple structure, small footprint, easy installation, and straightforward routine maintenance, reducing long-term usage and maintenance costs for customers.

Rich External Expansion: Can be equipped with external devices such as three-color alarm lights, printers, large displays, and barcode scanners. Supports secondary development and can interface with various production and logistics systems to achieve automated and intelligent production management.

Low Voltage Reminder: Displays a clear low battery indicator when power is insufficient, reminding users to charge or replace the power source promptly to avoid disrupting normal operation.

Basic Parameters

(Note: These specifications are standard regular items. Other specifications and sizes can be customized according to customer requirements. Please contact us for details.)

Additional Parameters

Applicable Scenarios

The A8E Check-weighing Gravity Roller Conveyor Scale with Alarm is widely used in overseas logistics, manufacturing, food processing, pharmaceutical, chemical, hardware, express delivery industries, etc., especially suitable for scenarios requiring continuous conveying and check-weighing of goods, such as:

Logistics and Express Industry: Check-weighing inbound/outbound goods, sorting parcels of various sizes, ensuring package weight matches waybill information, preventing revenue leakage.

Manufacturing Industry: In-line check-weighing of semi-finished and finished products on production lines, automatically screening out unqualified items, improving production quality and efficiency; applicable in quantitative packaging of granular materials like feed, chemical raw materials, and seeds.

Food and Pharmaceutical Industry: Check-weighing of food, medicine, and other products, meeting industry hygiene and accuracy requirements, ensuring product compliance.

Warehousing Industry: Weighing inventory, inspecting incoming and outgoing goods, achieving standardized weight management for goods.

Other Scenarios: Check-weighing luggage and parcels at transportation hubs like airports and train stations, weighing small to medium-sized goods in various industrial workshops, etc.
