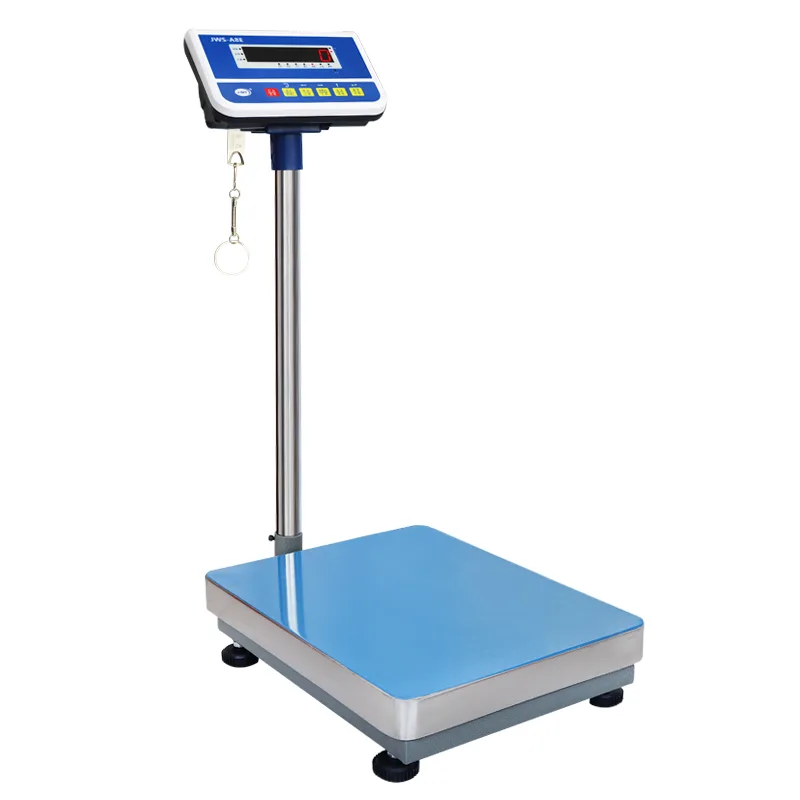

USB Flash Drive Storage Electronic Scale

Jutian’s USB Flash Drive Storage Electronic Scale automatically records weighing changes at second intervals. It offers two monitoring modes:

Single-channel time-based recording: One computer monitors one electronic scale;

Multi-channel time-based recording: One computer monitors multiple electronic scales (up to 10 scales per computer).

Easily view data changes anytime. As a source manufacturer, we offer preferential prices for bulk purchases, in-stock fast delivery, and support multi-function customization.

Product Features

Display: Optional LED digital tube / LCD backlight for clear reading;

Units: 3 internationally common units (kg/g/lb) with free conversion;

Basic Functions: Zero reset, tare, gross weight, net weight, accumulation, built-in alarm, weight memory, automatic averaging, auto-shutdown, low battery indication, power-saving mode, etc.;

Power Supply: AC/DC dual-use;

Power Source: AC 220V power cord (built-in 6V4A rechargeable battery);

Structure: ABS plastic shell for long service life;

Division Value: 3,000e;

Load Capacity: Compatible with 4 sensors of 350Ω;

Keys: 6 membrane keys with high water resistance;

Communication Interfaces: RS232, RS485, Bluetooth, relay signal output, 4~20mA analog output, Modbus protocol, Wi-Fi port, direct USB port (optional).

Model Parameters

Additional Optional Functions

Serial communication with multiple communication formats, supporting secondary development, connection to courier software and PDA;

Expandable three-color light alarm function;

Expandable relay, supporting secondary development of quantitative packaging control programs;

Expandable Bluetooth function for connection to logistics software;

Expandable RS485 communication with Modbus protocol support;

Expandable 4~20mA analog output;

Expandable USB module with 4 storage modes: manual, automatic, automatic (within qualified range), manual (within qualified range);

Expandable free-editing printing function, storing 999 variable values, supporting secondary development of printing features;

Expandable local area network (LAN) for scale networking;

Expandable remote control via external network, supporting secondary development and project customization.

Note: All above additional functions are optional. Please contact us to confirm the required expanded functions before ordering.

Key Functions Summary

Built-in alarm with 3-stage alarm settings (upper limit, lower limit, qualified range);

Auto-calibration, zero tracking, weight memory, and automatic averaging;

Weighing, weight accumulation, weight memory, and simple counting;

Animal weighing function;

Clear low-battery indication when power is insufficient;

Weighing indicator with durable ABS plastic shell;

Large LED/LCD backlight display for easy reading;

304 stainless steel weighing pan: elegant appearance, sturdy and durable;

6 membrane mechanical keys with high water resistance;

Adjustable display angle for convenient operation;

High-precision sensor with accuracy up to 1/15,000 and internal resolution of 600,000;

Optional functions: three-color light audio-visual alarm, external printer, Bluetooth communication, RS232 serial port, direct USB port, Wi-Fi, etc. Please contact our professional customer service to confirm required expanded functions when purchasing.
