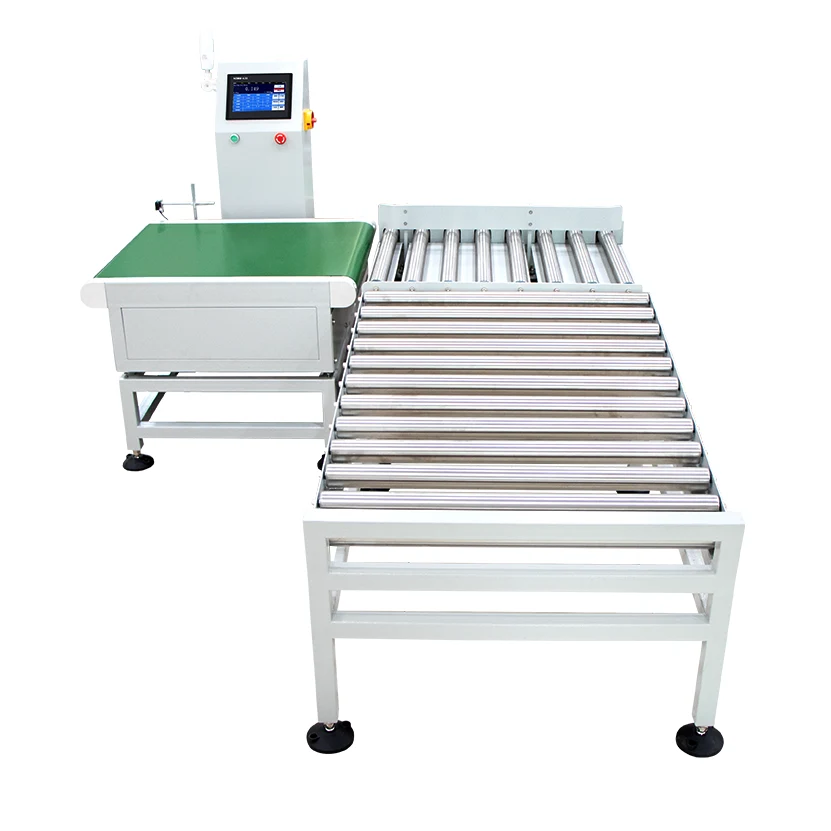

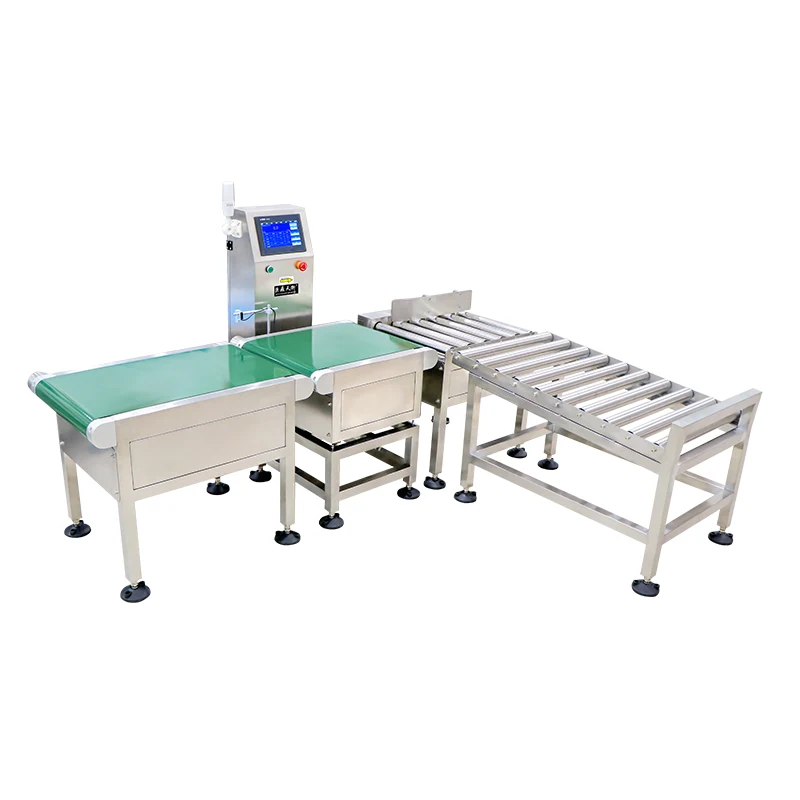

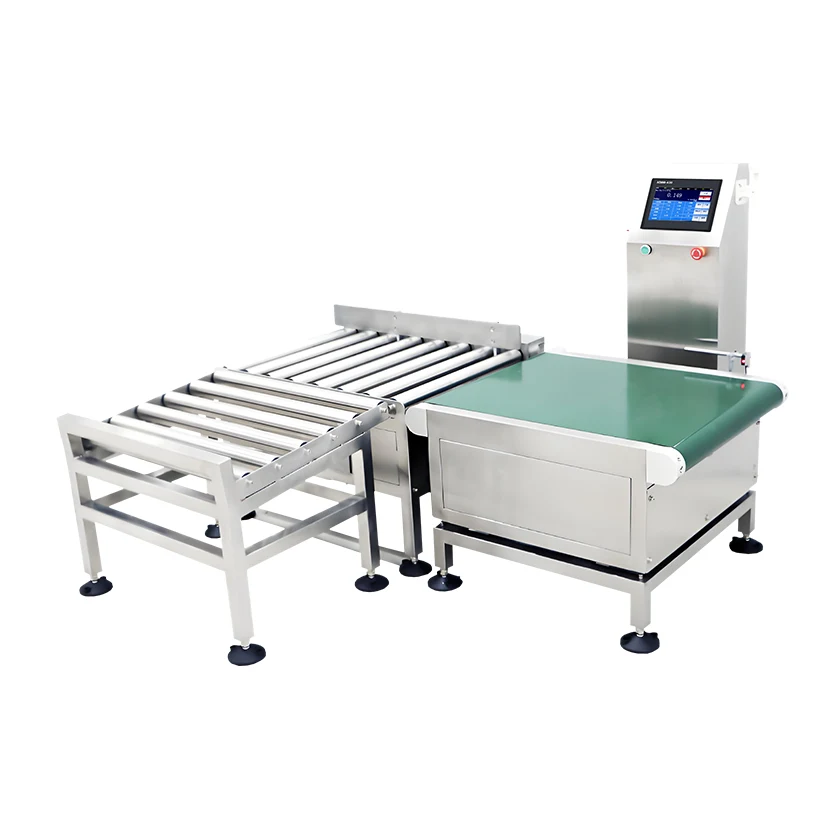

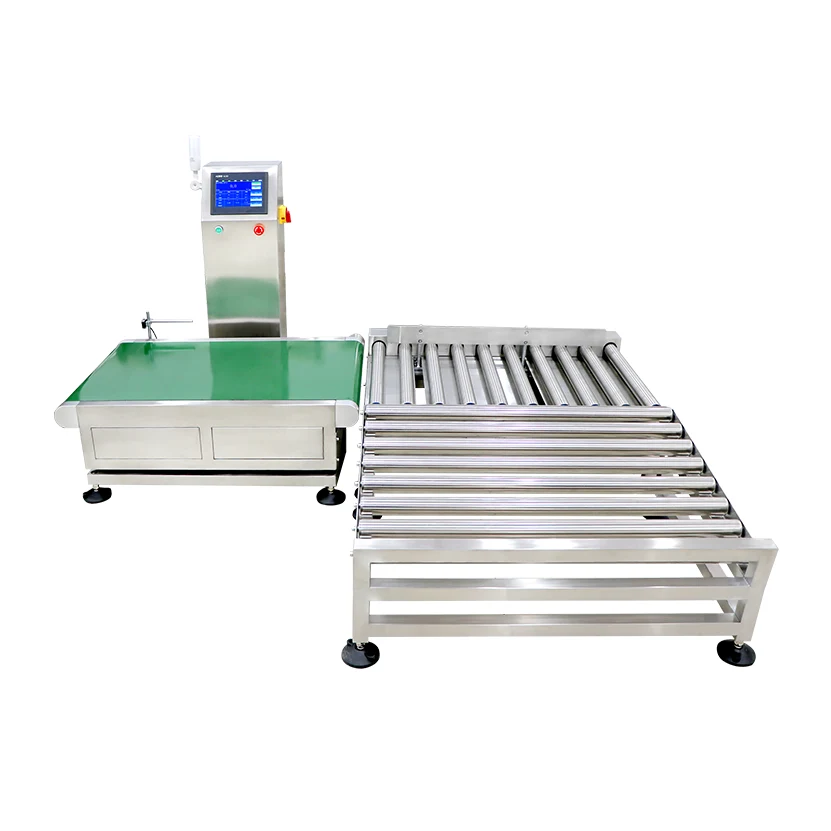

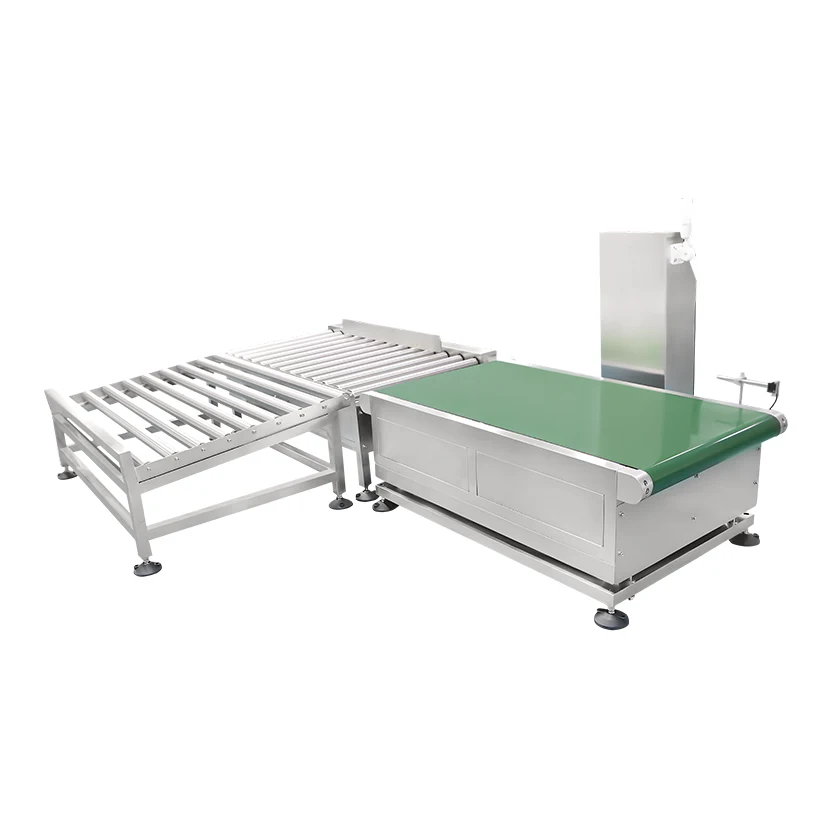

Assembly Checkweigher Scale

J-SKY Assembly Checkweigher Scale is an industrial-grade automatic online dynamic checkweighing device developed by Jiangsu Jutian Weighing Equipment Co., Ltd. — a professional manufacturer with over 20 years of experience in the weighing industry, supported by its in-house 919 R&D Center.

Designed for various automated assembly and production lines, it can be seamlessly integrated to perform 100% online full weight inspection, net content compliance verification, missing parts detection, automatic rejection of non-conforming products, and full-link traceability of weighing data. It serves as a core quality control instrument for food, pharmaceutical, daily chemical, hardware, and other industries to achieve quality management, compliant production, cost reduction, and efficiency improvement.

Core Performance & Competitive Advantages

Equipped with an industrial-grade high-precision weighing sensor, combined with Jutian’s self-developed intelligent compensation algorithm and anti-vibration structure, the checkweigher delivers:

Weighing range: 1–10 kg

Minimum detection accuracy: ±3 g

Maximum inspection speed: 150 pieces per minute

These specifications far exceed the efficiency and stability of comparable equipment. Driven by a 24V brushless motor, the machine enables long-term maintenance-free stable operation, greatly reducing production losses caused by unplanned downtime.

The intelligent weighing control system, developed on the Linux platform, is equipped with a 7/10-inch industrial touch screen supporting Chinese/English bilingual operation. It automatically stores and uploads weighing data in real time, generates traceable production reports, and supports local export via USB flash drive.With abundant reserved interfaces including RS232/RS485 and Ethernet, it can seamlessly connect with PLC, ERP, MES, and other production management systems, meeting strict traceability and compliance requirements in the pharmaceutical and food industries.

The main body is constructed from food-grade 304 stainless steel (316L corrosion-resistant material optional). The belt-type model comes standard with a food-grade PU conveyor belt, complying with international food safety standards.Standard protection class: IP54 (IP65 high-grade dustproof and waterproof optional), suitable for humid, dusty, and harsh production environments.The machine supports air blast, pusher, and flap rejection modes, which can be flexibly selected according to different product types.

Core Technical Parameters

Application Scenarios & Quality Assurance

This Assembly Checkweigher Scale is widely used in food & beverage, pharmaceutical & chemical, daily necessities, hardware & toys, printing & packaging, and other industries, suitable for online inspection of bagged, bottled, boxed, and various other product types.

All equipment complies with OIML R51 international metrological standards and has passed CE and ISO9001 authoritative certifications. Manufactured in Jutian’s own intelligent factory in Zhejiang with a full-process quality control system, the checkweigher has been exported to more than 50 countries and regions worldwide, with a customer satisfaction rate of 99.9%.

We support full-process OEM, ODM, and OBM customization, including equipment dimensions, functional modules, and software secondary development based on customer production line layout. We provide a closed-loop service system:

Pre-sales: free solution design

In-sales: real-time production progress updates

After-sales: 24-hour online technical support

Purchasing FAQ

Q: Can this checkweigher be adapted to our existing production line?

A: Yes. The Assembly Checkweigher Scale supports full parameter customization including dimensions, interfaces, and operating speed, and can be seamlessly connected to most production lines on the market. Our technical team can provide a dedicated integration plan based on your layout.

Q: Can the equipment be used in food and pharmaceutical cleanrooms?

A: Absolutely. The machine is standard with a food-grade 304 stainless steel body and food-grade PU conveyor belt, with no hygienic dead corners, fully meeting clean production standards for food and pharmaceutical industries. 316L corrosion-resistant material and IP65 high protection class are optional for special environments.

Q: Can weighing data be connected to our ERP/MES production systems?

A: Yes. The machine is equipped with abundant industrial interfaces and supports multiple communication protocols such as RS232/485 and Ethernet, enabling seamless connection with enterprise ERP, MES, PLC systems to fulfill full-link production data traceability.

Q: Are you a manufacturer or a trading company? Do you provide on-site installation?

A: We are an original manufacturer with over 20 years of industry experience, owning a R&D center in Suzhou, an intelligent production factory in Zhejiang, and a national service network. We provide full-scene on-site services including installation, commissioning, and personnel training.

Q: What is the delivery lead time? Is stock available?

A: Regular standard models are in stock and can be shipped within 7 working days after payment. Customized models generally take 15–20 working days for production and delivery; urgent orders can apply for accelerated production scheduling.
