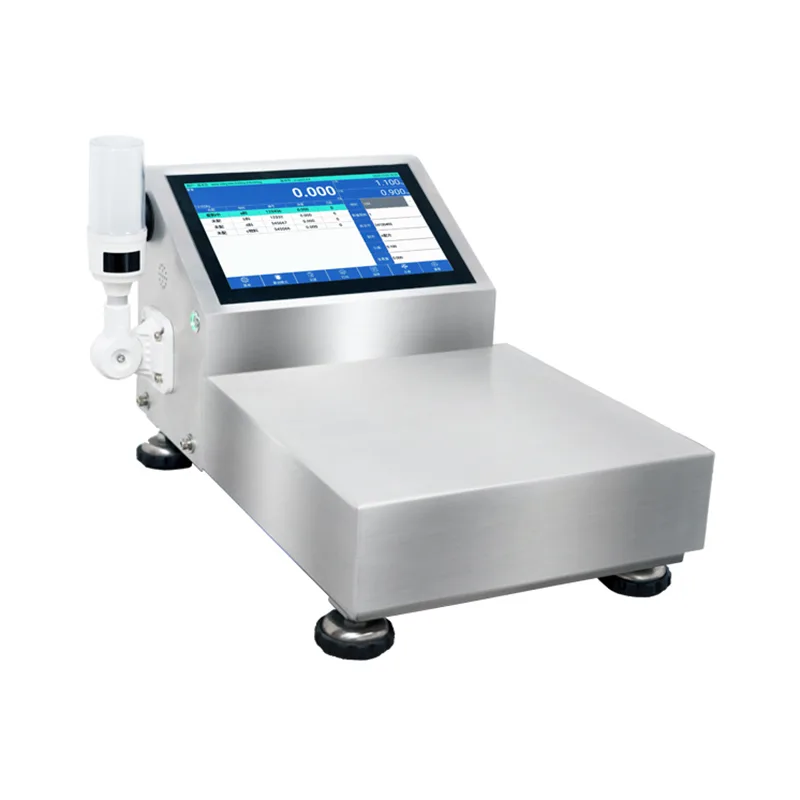

Foolproof Intelligent Weighing Scale for Cosmetic Ingredient Formulations

The Foolproof Intelligent Weighing Scale for Cosmetic Ingredient Formulations is a recipe-driven weighing workstation developed by Jiangsu Jutian Weighing Equipment Co., Ltd. It is designed for cosmetic manufacturing environments where multiple raw materials must be weighed in precise quantities according to a defined formula, and where ingredient mix-ups or dosage errors can compromise product quality, batch consistency, or regulatory compliance.

The system guides the operator through each step of a stored recipe: identifying the required material, confirming the target weight, monitoring the actual dispensed weight in real time, and alerting if the dispensed amount exceeds the tolerance window. Material verification via barcode scanning is integrated into the workflow to prevent ingredient substitution. All weighing events are logged with timestamps, operator identification, material code, target weight, and actual weight for batch record documentation.

Recipe-Guided Workflow and Error Prevention Logic

The foolproof weighing process follows a structured sequence designed to minimize human error during manual ingredient dispensing:

1. Recipe selection: The operator selects a stored formula from the recipe database via the touchscreen. Each formula contains a list of ingredients with target weights, acceptable tolerance ranges (±), and dispensing order.

2. Material identification: Before each ingredient is weighed, the system prompts the operator to scan the barcode on the raw material container. The scanned code is compared against the recipe specification. If the material does not match, the system displays a warning and prevents progression to the weighing step.

3. Guided dispensing: The display shows the target weight for the current ingredient. As the operator dispenses material onto the scale, a real-time bar graph or numeric indicator shows progress toward the target. Visual and audible signals indicate when the dispensed amount is within the acceptable tolerance window.

4. Out-of-tolerance alert: If the dispensed weight exceeds the upper tolerance limit, an alarm is triggered and the ingredient is flagged for review. The system records the event but requires supervisor acknowledgement before proceeding to the next ingredient.

5. Sequential progression: Once an ingredient is correctly dispensed and confirmed, the system automatically advances to the next item in the recipe. This enforced sequence prevents skipped or duplicated ingredients.

6. Batch completion and data logging: Upon completion of all recipe steps, a batch summary is generated. All weighing data—ingredient codes, target weights, actual weights, timestamps, and operator ID—are saved to internal storage and can be exported for batch record documentation.

Hardware Specifications and Model Options

Common specifications across all models: Display: 10-inch HD capacitive touchscreen (1024×768 resolution); System: RK3288W quad-core Cortex-A17 processor, Android OS, 2G RAM + 8G ROM; Housing: 304 stainless steel construction; Power supply: AC 100-240V input, DC 12.7V 3500mA output; Operating environment: -10°C to 40°C, humidity below 90% (non-condensing); Standard interfaces: USB×2, RS232×2, I/O output×1, RJ45×1; Built-in communication: Wi-Fi, Bluetooth; Optional: 4G IoT, HDMI, external printer, barcode scanner, alarm light, remote display, card reader. Platform size and weighing range can be customized.

Jiangsu Jutian Weighing Equipment Co., Ltd. is certified under ISO9001 quality management. The company's 919 R&D Center develops weighing software and embedded control systems, holding 68 national patents and 20 software copyrights. Products are CE certified and manufactured in two production facilities. The Android-based control system supports secondary development via provided SDK and API documentation.

Software System and User Access Management

The weighing scale runs on an Android operating system with a custom application that manages recipe storage, material verification, weighing workflow, and data export. Recipes can be created directly on the touchscreen or imported via USB from formulation spreadsheets. Each recipe entry includes the material name, code, target weight, and tolerance limits.

User access is controlled through a multi-level permission system. Operator-level accounts can execute recipes and perform weighing but cannot modify formula parameters. Supervisor or administrator accounts have access to recipe creation, tolerance adjustment, and system configuration. This separation of roles supports compliance with Good Manufacturing Practice (GMP) requirements for data integrity and audit trails.

Data export supports CSV format for batch record documentation and integration with ERP or MES platforms through Ethernet or serial communication. The RJ45 port supports TCP-IP and HTTP protocols. Optional 4G IoT connectivity enables cloud-based data backup and remote recipe deployment.

Typical Deployment Locations

FAQ (Frequently Asked Questions)

How does the system prevent an operator from using the wrong ingredient?
Before dispensing each ingredient, the system requires the operator to scan the barcode on the raw material container. The scanned barcode is compared to the material code stored in the active recipe. If the codes do not match, the system locks the weighing step and displays a mismatch warning. The operator must scan the correct material to proceed.

What happens if an ingredient is dispensed outside the tolerance range?
The system monitors the dispensed weight in real time. If the weight exceeds the upper tolerance, an alarm is triggered and the ingredient is flagged in the batch record. The operator cannot proceed to the next recipe step until the deviation is acknowledged, typically by a supervisor with the appropriate access level. This creates a documented exception for batch review.

How are recipes created and managed?
Recipes can be created on the touchscreen by entering ingredient names, codes, target weights, and tolerances. Alternatively, recipes can be prepared offline in a spreadsheet and imported via USB. Stored recipes are protected from unauthorized modification through user access controls—only supervisor or administrator accounts can edit formula parameters.

Can the scale integrate with an existing ERP or batch record system?
Yes. Weighing data—including material codes, target and actual weights, timestamps, and operator ID—can be exported in CSV format via USB, or transmitted in real time through Ethernet (TCP-IP), RS232, or optional 4G IoT. Communication protocol specifications are available for integration by the customer's IT team.

What maintenance is required for the touchscreen and scale platform?
The stainless steel platform and housing should be cleaned after each use, particularly when handling oils, pigments, or powders. The touchscreen can be wiped with a soft, damp cloth. Periodic calibration verification with certified weights is recommended at intervals defined by the facility's quality system. The modular software architecture allows firmware updates via USB or network connection.
