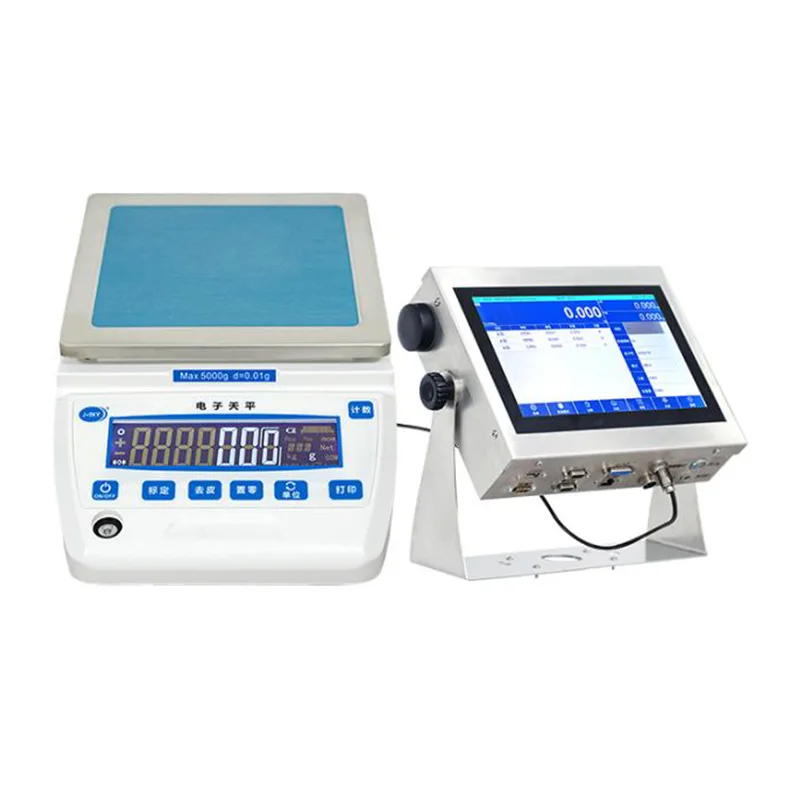

Intelligent Electronic Balances Support Non-standard Customization of Functions

The Intelligent electronic balances support non-standard customization of functions based on the Android system, equipped with a 10-inch high-definition touchscreen supporting multi-touch operation. It features checkweighing alarm, data storage and export functions, enabling formula and record management via USB flash drive or network. It supports multiple communication interfaces (RS232, TCP/IP, Wi-Fi, Bluetooth) and is compatible with optional extended devices such as 4G IoT modules and barcode scanners. Ideal for various industrial weighing scenarios including production line checkweighing and formula batching, it delivers a stable and intelligent weighing solution.

Product Features

Electronic Balance

LCD display for clear and bright readings

External calibration function with standard weights included as standard

Equipped with counting weighing mode

Adjustable shockproof filtering function

Auto-zero function

Supports 21 weighing units including gram, carat, ounce, pound, etc.

Built-in clock setting

Standard RS232 interface for connecting to computers and printers

Optional 485, Wi-Fi, Bluetooth, Ethernet port, Type-B port and USB storage

Standard 6V 2.8A rechargeable battery for 48 hours of continuous use

Optional under-hook weighing device

Optional thermal printer

Intelligent Controller

High-definition color touch display for easy reading

Adopts high-precision load cells with accuracy up to 1/15,000 and internal resolution of 600,000

Features single-point external calibration, zero tracking and weight memory functions

Built-in checkweighing alarm function

Stores multiple sets of product or formula data, including product name, material name, material code, upper & lower weight limits, etc.

Exports weighing record reports via USB flash drive for easy data inquiry and traceability, ensuring data validity

Customizable weighing platform size and material per customer requirements

Supports external devices like alarm lights, printers, large display screens, card readers, secondary weighing platforms and secondary displays

Customizable weighing application systems available

Provides standard TCP/IP communication protocol and Android system SDK, facilitating integration with ERP systems and APPs

Technical Specifications

Application Scenarios

1. Industrial Production Lines: Product checkweighing, sorting and package weight verification

2. Batching & Formula Production: Raw material proportioning in food, chemical, pharmaceutical and other industries

3. Logistics & Warehousing: Package weighing, freight calculation and inventory management

4. Laboratories & Quality Inspection Departments: High-precision material weighing, sample analysis and quality control

5. Environmental Protection & Recycling: Garbage classification weighing and waste recycling measurement

6. Retail & Commerce: Price label printing, retail weighing and barcode integration
