Decline Rejecting High Speed Machine

Developed independently by Jiangsu Jutian Weighing Equipment Co., Ltd., with over 20 years of expertise in the weighing industry, the Decline Rejecting High Speed Machine is a high-precision automatic checkweighing and rejecting machine designed to solve the online checkweighing challenges of flat-shaped products. As a dedicated scenario-based model in Jutian’s intelligent checkweighing series, it effectively overcomes common industry problems of traditional checkweighers, such as jamming, inaccurate rejection, and surface scratching when handling flat items. Tailored for flat products including books, metal sheets, flat packaging, and PCBs, it provides global customers with high-speed, damage-free production line weight compliance control and sorting solutions. The product is exported to many countries and regions worldwide and widely acclaimed by customers across various industries.

Specialized Scenario-Optimized Structure

The core competitive advantage of this Decline Rejecting High Speed Machine lies in its drop-type rejection system and four-section overall structure, specially optimized for flat products. The machine consists of four core units: feeding conveyor section, weighing detection section, drop rejection section, and qualified product conveyor section, forming a closed-loop workflow: stable-speed feeding → precise weighing → intelligent judgment → sorted conveying.

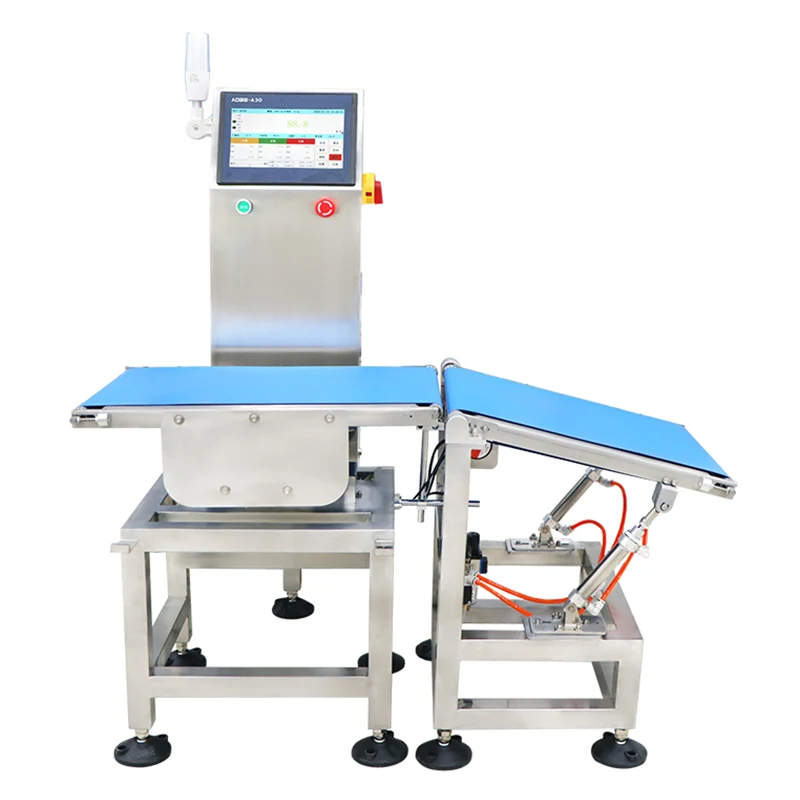

To address the pain points of flat products—easy stacking, surface scratching, and frequent jamming with traditional rejection methods—the machine adopts a flap-type drop rejection structure. When an unqualified product is detected, the rejection guide plate flips rapidly, allowing the product to slide smoothly into the reject channel by its own weight. The whole process features no hard impact or contact scratching, protecting the surfaces of printed materials, food flexible packaging, and precision electronic components, while completely eliminating jamming and missed rejection. It supports continuous operation at a high line speed of up to 200 pieces per minute, ensuring production continuity and product yield.

Core Performance & Basic Configuration

The Decline Rejecting High Speed Machine frame is made of food-grade SUS304 stainless steel (SUS316 available as an option), and the conveyor belt is food-grade PU material. The whole machine is easy to disassemble and clean, meeting the hygiene standards of the food and pharmaceutical industries. Equipped with imported high-precision weighing sensors and high-performance brushless motors, it runs stably without vibration. With a weighing range of 0.1–5kg and a minimum detection accuracy of ±0.5g, it can accurately identify unqualified products due to over-weight, under-weight, missing pages, or missing components.

It is fitted with a 7/10-inch bilingual Chinese-English touch screen with a simple and intuitive interface, supporting quick switching between multiple product recipes. Powered by Jutian’s self-developed intelligent weighing system, it provides diversified data statistics and USB data export functions. It can be seamlessly connected with upstream and downstream equipment such as inkjet printers, barcode scanners, and metal detectors, and integrated with enterprise ERP and MES systems for full-process traceability of inspection data.

Core Technical Parameters

Customization, Application Industries & Service Support

The machine supports full-process personalized customization. Specifications, rejection modes, functional modules, and protection levels can be customized according to customers’ product dimensions, line speed, workshop layout, and process requirements. Extended functions such as re-inspection, counting, scanning, and visual inspection are optional to meet diversified industrial demands.

It is widely used in multiple sectors:

Printing & Publishing: missing page detection for books, picture albums, and manuals;

Food & Pharmaceuticals: net content and missing component inspection for bagged crackers, facial masks, aluminum-plastic medicines, and plasters;

Electronics & Hardware: missing component detection for PCBs, metal sheets, and precision flat parts;

Daily Chemicals & Toys and other industries.

It serves as core equipment for automatic quality control on flat product production lines.The Decline Rejecting High Speed Machine has obtained authoritative international certifications including CE and ISO, and complies with the OIM R51 international metering standard. Strict full-process quality control is implemented in production, with 100% full-performance simulation testing before delivery.

For after-sales service, Jutian provides a 12-month free warranty and lifelong maintenance support, accompanied by bilingual Chinese-English installation manuals and operation training videos. It offers 24-hour remote technical support and on-site commissioning & training. The machine is packed with export-standard shockproof packaging, suitable for sea, air, and other transportation modes, delivering one-stop customized checkweighing solutions to global customers.
