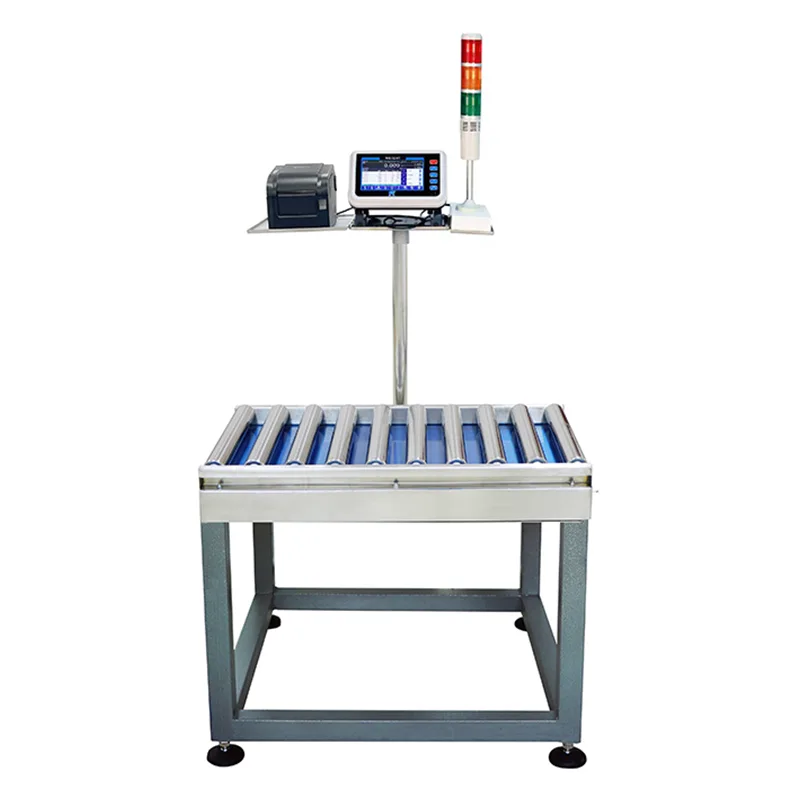

Unpowered Roller-Type Intelligent Electronic Platform Scale

Model Parameters

Note: Roller sizes can be customized according to customer requirements (limited in-stock items, please call for detailed consultation).

Basic Introduction to the Intelligent Scale

The unpowered roller-type intelligent electronic platform scale adopts a user-friendly high-definition touch color screen for simple and convenient operation;

It features accurate, stable, and fast weighing performance;

Various weighing applications can be downloaded to meet the measurement needs of different industries;

A graphical intuitive operation interface prevents operational errors;

Automatically generates weighing records and weighing management reports;

Display: 7-inch industrial resistive color touch screen (resolution 800*480);

Keys: 5 mechanical keys with a user-friendly touch interface;

Power Supply: AC adapter (12V/2.5A), built-in 6V4A rechargeable battery / optional 12V lithium battery pack for power supply;

Interfaces: Two USB interfaces, one RJ45 interface, two RS232 serial ports, and wireless Wi-Fi;

Memory: 1G RAM and 1G flash memory;

ID Variables: Product, code, operator, and 8 optional ID variable information;

Data Statistical Analysis: Supports statistics on product/8 ID variables/weighing data/check weight value/judgment result/operator, etc.;

Print Format: User-required formats can be freely edited and imported into the internal database for calling, featuring flexible application and simple operation;

External Device Compatibility: Can be connected to external devices such as mouse, U disk, barcode scanner, alarm light, printer, card reader, large screen, and computer;

Data Saving Modes: Multiple data saving methods including manual accumulation, automatic accumulation during loading, automatic accumulation during unloading, barcode scanning accumulation, card reading accumulation, and accumulation only for qualified products;

Scale Body Structure: Optional carbon steel/stainless steel/die-cast aluminum scale frame, paired with a stainless steel weighing pan and high-precision load cells. It has an elegant appearance, is sturdy and durable, ensures stable and high-precision weighing, and is easy to maintain;

Customization & System Integration: The application system of the unpowered intelligent roller scale can be custom-developed according to customer requirements to connect to databases and ERP systems (e.g., EMS, Kingdee, Housekeeper, etc.) for uploading and issuing weighing information and data.

Application Scenarios

The unpowered roller-type intelligent electronic platform scale is widely used for various weighing purposes on production lines in production inspection, quality control, food, chemical, packaging, and other industries. Its innovative structure, which combines rollers and electronic scales perfectly, is designed and manufactured according to customer requirements and can seamlessly connect with production lines. Equipped with imported sensors and a unique stabilization device, it ensures fast, accurate, and stable weighing. Multiple platform materials are available, including carbon steel, stainless iron, and stainless steel. Weighing capacity and platform size can be customized to meet customer needs.
